X13SEI-TF
Server Boards

X13SEI-TF

Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) in 8 DIMM slots

Supermicro Products
Server Boards
X13SEI-TF
Form Factor: E-ATX  |  Dimension: 12.3" x 10.1" (31.24cm x 25.65cm)  |  Cpu: 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors, Single Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP, *BIOS 2.1 or above is required to support 5th Gen Intel® Xeon® Scalable processors
#MBD-X13SEI-TF
Our Price: Request a Quote
Get a Quote

Details that matter

Engineered for professionals who demand the best in performance, security, and design.

5th/4th Gen Intel® Xeon® Scalable & C741

5th/4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E), CPU TDP supports up to 350W TDP
Intel® C741 Chipset

DDR5 Memory

Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) in 8 DIMM slots

NVMe via MCIO

2 MCIO (PCIe5.0 x8) connectors for 4 NVMe SSDs

PCIe 5.0 Expansion

2 PCIe 5.0 x16; 3 PCIe 5.0 x8

M.2 Storage

M.2 Interface: 2 PCIe 5.0 x4 (Form Factor: 2280/22110, M-Key)

Dual 10GbE LAN

Dual LAN with 10GbE with Intel® X550

USB Connectivity

4 USB 3.2 Gen1 (2 rear, 1 Type-A, 1 via header), 2 USB 2.0 (2 rear)

SATA3 Storage

Intel® C741 controller for 10 SATA3 (6 Gbps) ports

Technical Specifications

Full specifications for the model

SKU MBD-X13SEI-TF
Form Factor E-ATX
Dimension 12.3" x 10.1" (31.24cm x 25.65cm)
Cpu 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Single Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP
*BIOS 2.1 or above is required to support 5th Gen Intel® Xeon® Scalable processors
Core Count Up to 64 cores
Memory 8 DIMM slots
Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s
**24GB & 48GB DIMM only support 1 DPC.
*24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel® Xeon-SP CPU.
Memory Type 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC)
Dimm Sizes 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
Memory Voltage N/A
Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chipset Intel® C741
Sata Intel® C741 controller for 10 SATA ports; RAID 0/1/5/10
Ipmi ASPEED AST2600 BMC
Network Controllers Dual LAN with 10GBase-T with Intel® X550
Lan 2 RJ45
1 RJ45
Serial 1 COM
Dom 2 SATA DOM (Disk on Module) portwith power connector support
Pcie Configuration 2 PCIe 5.0 x16,
3 PCIe 5.0 x8,
2 PCIe 5.0 x8 PCIe5.0 MCIO connector
M 2 M.2 Interface: 2 PCIe 5.0
Form Factor: 2280/22110
Key: M-key
Bios Type AMIUEFI
Bios Features UEFI 2.8 or above
Management Software SuperCloud Composer® (SCC) , Supermicro Server Manager (SSM) , Supermicro Power Manager (SPM) , Supermicro Update Manager (SUM) , Supermicro SuperDoctor® 5 (SD5) , Super Diagnostics Offline (SDO) , Supermicro Thin-Agent Service (TAS) , SuperServer Automation Assistant (SAA) New! , Plug-ins for 3rd Party Software , IPMI Utilities
Security Hardware Trusted Platform Module (TPM) 2.0
Pc Health Voltage VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset voltage, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, Memory Voltages, 7-fan status
Pc Health Led UID/remote UID LED
CPU/system overheat LED
Pc Health Temperature Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal monitor 2 (TM2) support
PECI
Pc Health Fan 7x 4-pin fan headers (up to 7 fans)
Fan speed control
Overheat LED indication
7 fans with tachometer status monitoring
Pc Health Other Features WOL, UID, Node manager support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
Operating Temperature Range 0°C - 50°C (32°F - 122°F)
Non Operating Temperature Range -30°C - 60°C (-22°F - 140°F)
Operating Relative Humidity Range 8% - 80% (non-condensing)
Non Operating Relative Humidity Range 8% - 90% (non-condensing)

Custom Configurations

Looking for more configuration options or custom setups? Our team can help you find the right solution based on your requirements.

Contact Us

Bulk Purchase Support

Need multiple devices for your business or project? Contact us to discuss bulk pricing, availability, and delivery options.

Contact Us
Discover More

Similar Products

Explore other configurations and models that might suit your needs.

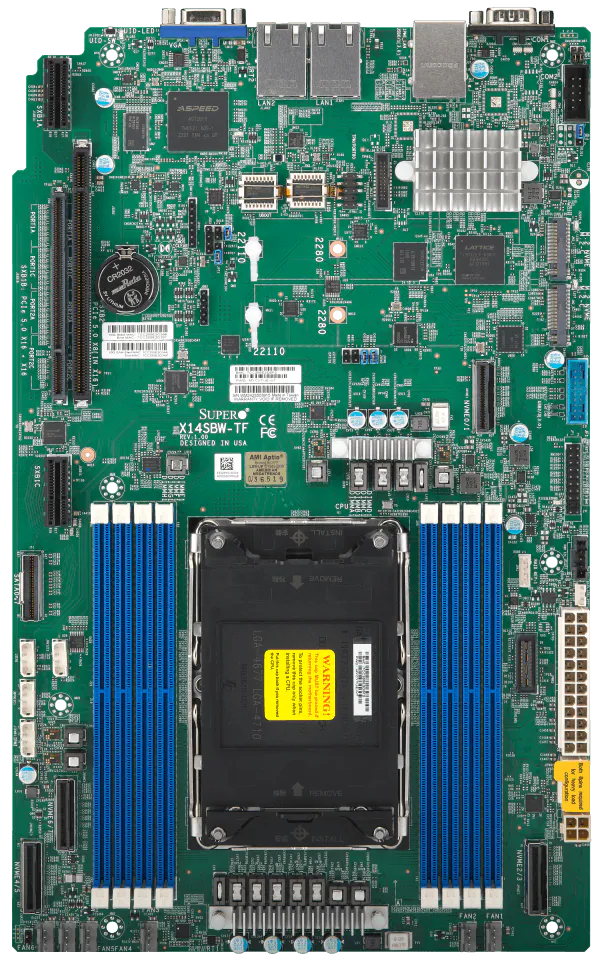

X14SBW-TF Recommended

X14SBW-TF

#MBD-X14SBW-TF

Up to 2TB ECC RDIMM DDR5-6400MT/s and up to 512GB MRDIMM DDR5-8000MT/s in 8 DIMM slots

  • Form Factor: Proprietary WIO
  • Dimension: 8" x 13" (20.32cm x 33.02cm)
  • Cpu: Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors…
View Details

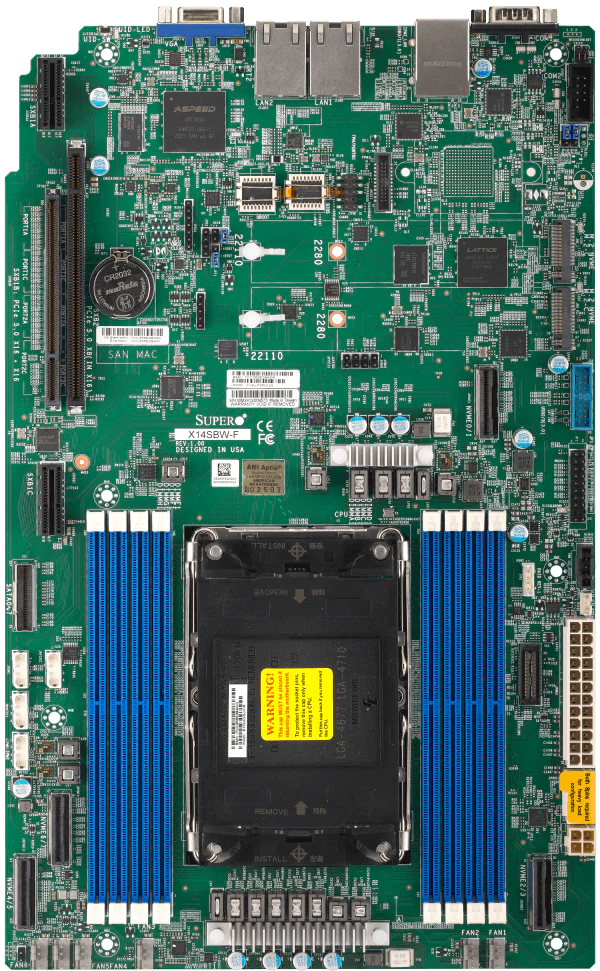

X14SBW-F Recommended

X14SBW-F

#MBD-X14SBW-F

Up to 2TB ECC RDIMM DDR5-6400MT/s and up to 512GB MRDIMM DDR5-8000MT/s in 8 DIMM slots

  • Form Factor: Proprietary WIO
  • Dimension: 8" x 13" (20.32cm x 33.02cm)
  • Cpu: Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors…
View Details

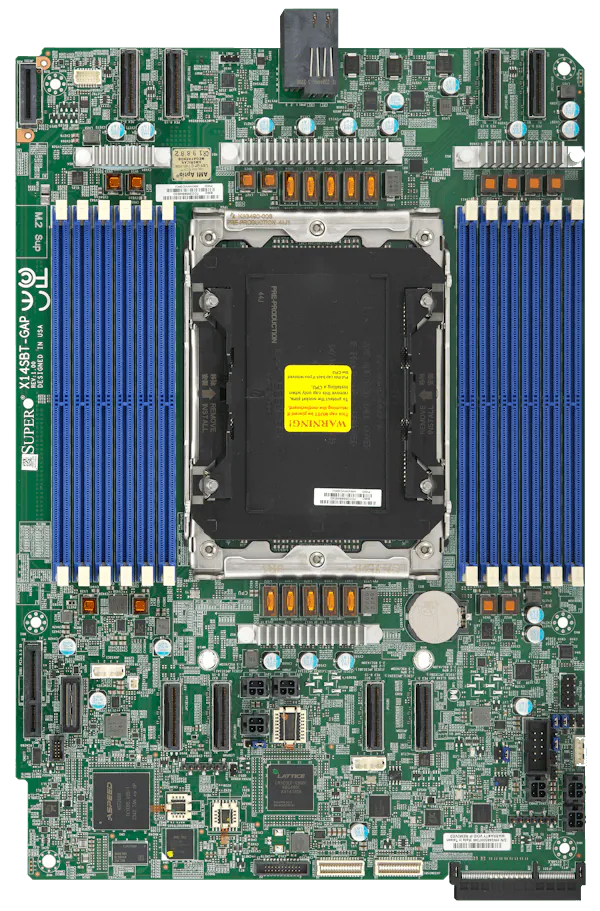

X14SBT-GAP Recommended
