CSE-721TQ-350B

Details that matter

Engineered for professionals who demand the best in performance, security, and design.

Motherboard Support

Compact Mini-Tower: D 11"x W 8.27"x H 9.45"
Support wide range of Mini-ITX (6.75"x 6.75") motherboards

Hot-swap Drive Bays

4 3.5" Hot-Swap SATA3/SAS2 drive bays, 2 internal 2.5" SATA drive bays, and 1 slim DVD-ROM drive bay

Expansion Slots

1 low-profile expansion slot for add-on cards

350W Power Supply

350W 80 PLUS Gold-certified High-efficiency power supply

Front USB, Intrusion Switch & Kensington Lock

2 USB2.0 ports(front), chassis intrusion switch, Kensington Lock supported

Dimensions

Height 9.45" (240.03 mm)
Width 8.27" (210.06 mm)
Depth 11" (279.4 mm)

Front Panel

Power On/Off button
System Reset button
Power status LED
HDD activity LED
1 Network activity LEDs
Fan Fail/System Over Heat LED
2x USB 3.0 Port(s)

Peripheral Drives

1x slim DVD-ROM drive bay

Technical Specifications

Full specifications for the model

SKU	CSE-721TQ-350B
Form Factor	Compact Mini-Tower chassis support for motherboard size 6.75" x 6.75"
Height	9.45" (240.03 mm)
Width	8.27" (210.06 mm)
Depth	11" (279.4 mm)
Gross Weight	15 lbs (6.8 kg)
Net Weight	13.5 lbs (6.12 kg)
Package	12.4" (315 mm) x 13.78" (350 mm) x 16.14" (410 mm)
Available Color	Black
Expansion Slots	1x Low-profile expansion slot(s)
Drive Bays	2x 2.5" fixed drive bay 4x 3.5" hot-swap SAS/SATA drive bay
Backplane	4x3.5" SAS2/SATA3 backplane w/SES-II
Peripheral Drives	1x slim DVD-ROM drive bay
Front Panel Buttons	Power On/Off button System Reset button
Front Panel Led	Power status LED HDD activity LED 1 Network activity LEDs Fan Fail/System Over Heat LED
Front Panel Ports	2x USB 3.0 Port(s)
Fans	1x 12cm rear exhaust fan(s)
System Monitoring	Chassis intrusion switch
Operating Temperature Range	0°C - 40°C (32°F - 104°F)
Non Operating Temperature Range	-20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range	10% - 85% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)
Power Supply	350W 1U multi-output power supply
Power Supply Total Output Power And Input	350W with Input 100 - 240Vac
Power Supply Ac Input Frequency	50-60Hz
Power Supply Dimension Lxwxh	150 x 81.5 x 40.5 mm
Power Supply Output Type	24pin ATX
Power Supply Minus 12v	Max: 0.3A / Min: 0.05A
Power Supply 12v	Max: 28A / Min: 0.1A (100Vac - 240Vac)
Power Supply 5v	Max: 15A / Min: 0.2A
Power Supply 3 3v	Max: 10A / Min: 0.1A
Power Supply 5v Sb	Max: 2A / Min: 0.05A
Power Supply Certification	Gold Certified
Power Supply Safety Emc	BSMI CCC FCC class B TUV/CB UL/CB

Custom Configurations

Looking for more configuration options or custom setups? Our team can help you find the right solution based on your requirements.

Bulk Purchase Support

Need multiple devices for your business or project? Contact us to discuss bulk pricing, availability, and delivery options.

Call a Specialist
Today!

Our team of experts is ready to help you find the perfect solution for your business needs. Get personalized advice and competitive quotes.

Monday - Friday: 9:00 AM - 6:00 PM AEST

Sydney, Australia

CSE-721TQ-350B

Details that matter

Motherboard Support

Hot-swap Drive Bays

Expansion Slots

350W Power Supply

Front USB, Intrusion Switch & Kensington Lock

Dimensions

Front Panel

Peripheral Drives

Technical Specifications

Custom Configurations

Bulk Purchase Support

Similar Products

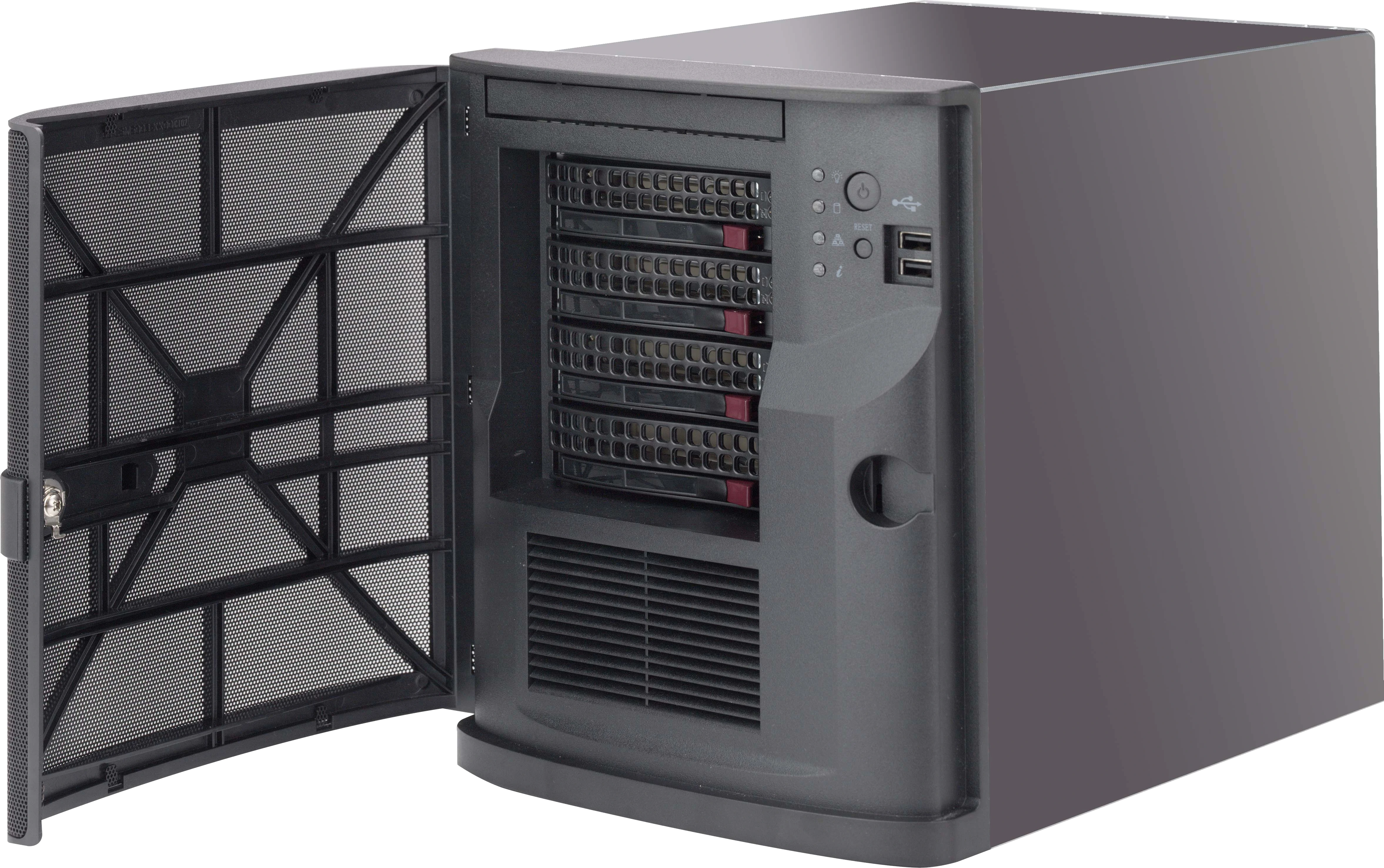

CSE-721TQ-350B2
